Author Topic: A "Must Have" for Those with Limited Shop Space  (Read 4064 times)
John Helm
Silver Member
***
Location: Northern New Jersey
Posts: 286


« on: February 17, 2012, 04:43:03 PM »

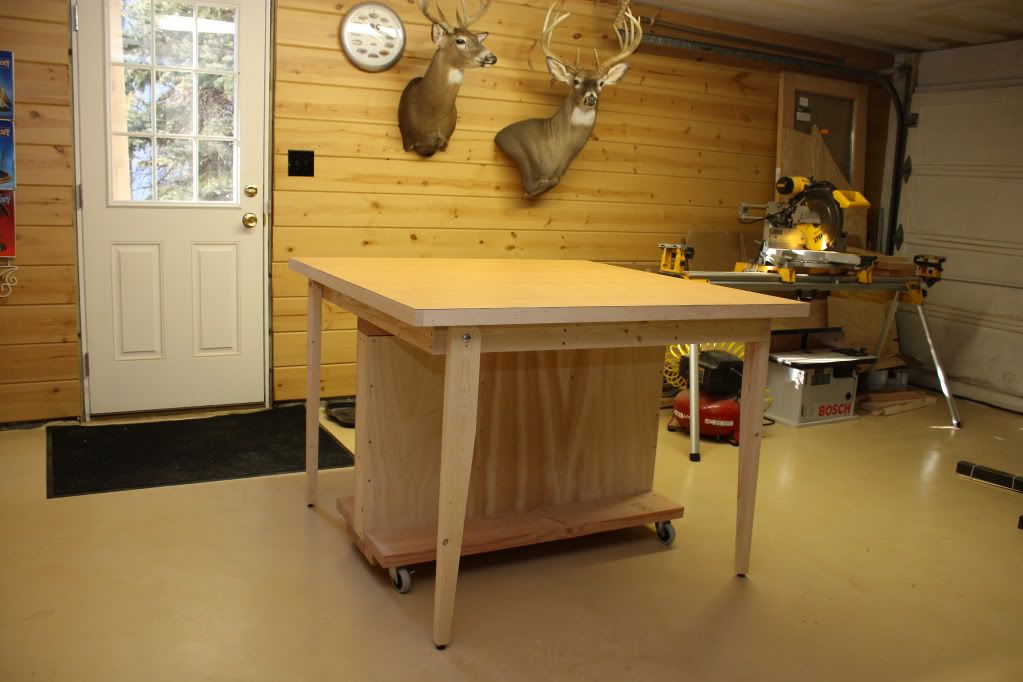

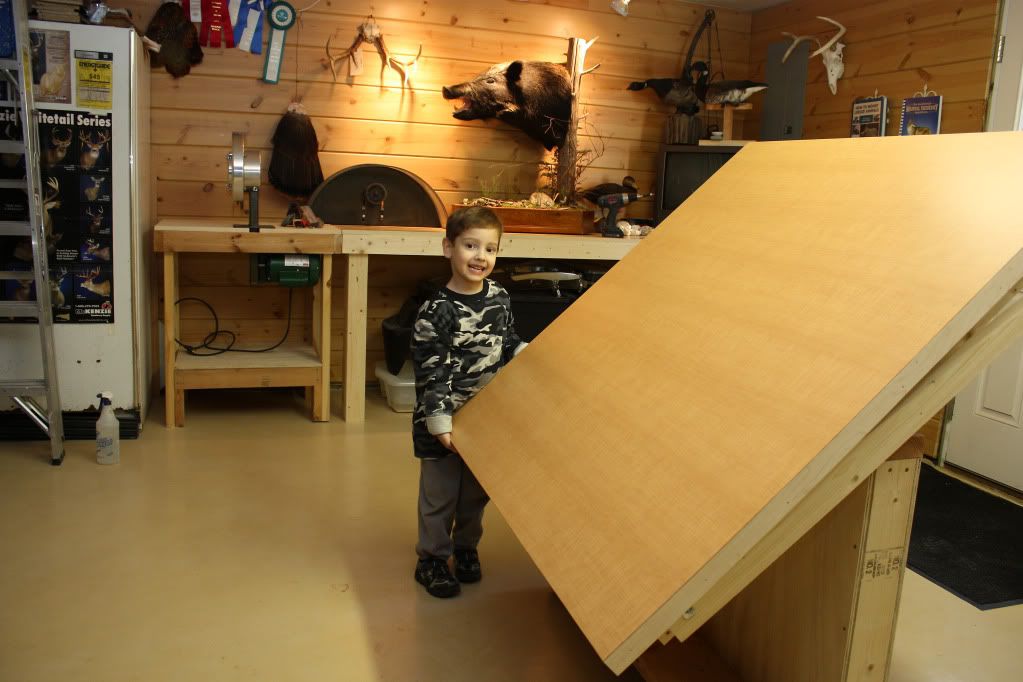

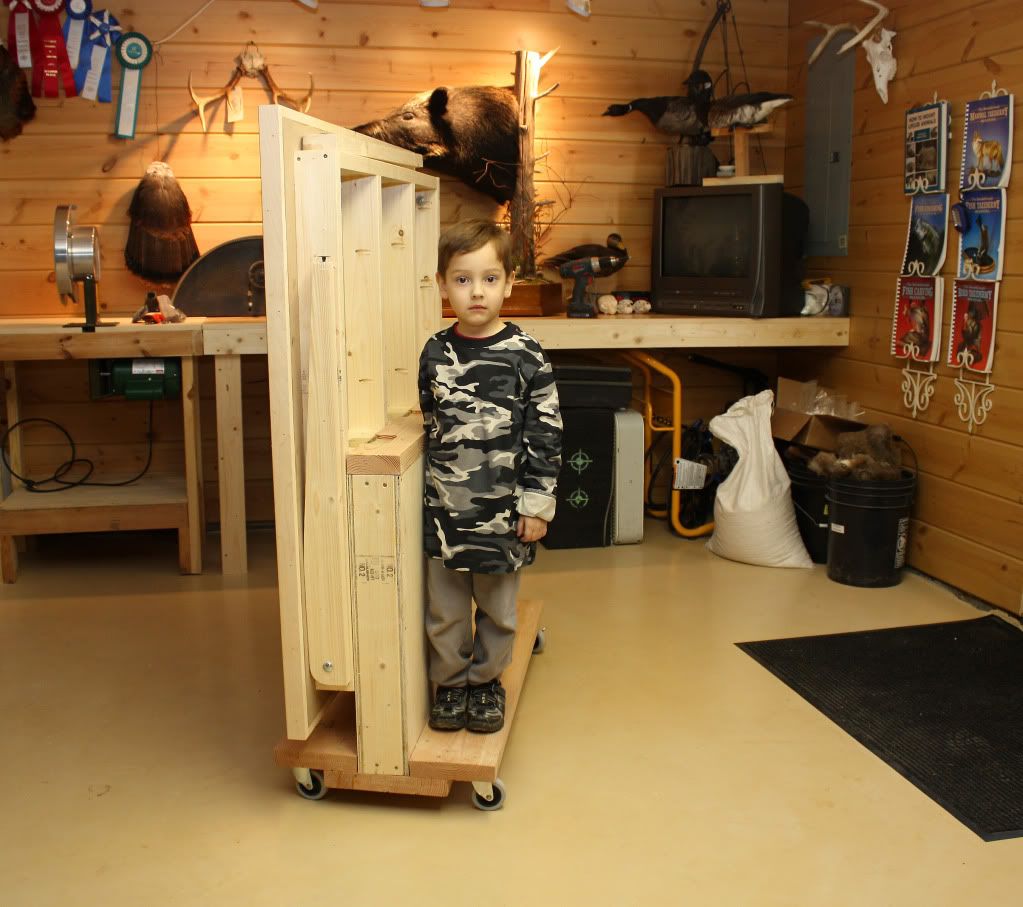

If youre like me and have limited shop space, check out this useful assembly table I made a couple weeks ago.  The top is made of two 4 by 4,  mdf panels laminated together so its dead flat.  The edge is trimmed in maple and I laminated a maple pattern formica top to the mdf.  The frame and base is 2x structural lumber with folding legs planed to 1 .  Each leg has leveling risers and the base has four 4 rolling casters, two of which are locking.  The great part is that the table top is hinged at the center and folds up vertically with an 18 x 48 footprint thats 56 high.  It can be rolled against the wall and stored when not in use.  It took a couple days and about $275 in materials to build, but its utility is phenomenal.  If youre interested in where I got the plans for it, PM me and Ill let you know.  To construct this table youll need a miter saw, table saw, thickness planer, jointer, router, drill, various hand tools, lots of clamps, laminate roller, wood glue, screws, etc.  I recommend building this or having one built for you by a local woodworker if youre tired of a lack of assembly space.  Hopefully this has been of some help to someone.   Sorry if I didn't post this in the right section, but I felt it would especially apply to life size work.



Logged
dog sick
Bronze Member
**
Location: nj.
Posts: 224


« Reply #1 on: February 17, 2012, 06:34:16 PM »

looks great. wish i had the room. i like the flesahing wheel bench in the back ground. i like the way it folds up that good for small shops
Logged
DL
Platinum Member
*****
Location: Rescue, Ca
Posts: 9355


« Reply #2 on: February 17, 2012, 06:59:18 PM »

Some of you fellas that have talent woodworking ought to sell a set of plans for your projects.
Logged
rbear
Platinum Member
*****
Location: DeWitt Michigan
Posts: 1235


« Reply #3 on: February 17, 2012, 07:08:56 PM »

Nice looking table.
Ralph
Logged

Common sense is the highest form of logic
brigham boy
Gold Member
****
Location: utah
Posts: 728


"if it's horny, mount it"

« Reply #4 on: February 17, 2012, 07:38:22 PM »

I like that a lot   Awesome job
Logged

"live in the moment."
Tony111
New Member
*
Location: W.C. Ohio
Posts: 25


« Reply #5 on: February 17, 2012, 07:42:56 PM »

Very nice work on the table John. Nice shop also. Does the little guy do the cleaning?
Logged
nalley1952
Silver Member
***
Location: Maryland
Posts: 300

« Reply #6 on: February 17, 2012, 07:43:45 PM »

How do you keep your shop that clean????
Logged
John Helm
Silver Member
***
Location: Northern New Jersey
Posts: 286


« Reply #7 on: February 17, 2012, 08:36:43 PM »

Thanks guys.  Actually he does help me clean and helps with mounting also.  I clean the place daily - can't stand dirt and clutter :)
Logged
falco
Gold Member
****
Posts: 881

Trapping is fun

WWW
« Reply #8 on: February 17, 2012, 11:35:57 PM »


How do you keep your shop that clean????

I was going to ask the same question ....
Is this where you do your work ???
Logged
Matt
Platinum Member
*****
Posts: 10582


WWW
« Reply #9 on: February 18, 2012, 12:39:59 AM »

Nice job on the table John, it looks great! In this business, nothing is standard and building to your needs will make your job alot easier in the end. Those are nice castors, I use that type for alot of things.
Logged

cattrax
Gold Member
****
Location: SE Montana
Posts: 964


Beats being in the shop!

WWW
« Reply #10 on: February 18, 2012, 07:58:17 AM »

How do you keep your shop that clean????

That's all I could think of when I looked at that
Logged
Doug Bridges
Platinum Member
*****
Location: Metamora, MI
Posts: 1854


WWW
« Reply #11 on: February 18, 2012, 08:04:11 AM »

How do you keep your shop that clean????
His shop? Hell, how do you keep your kid that clean?  lol
Logged

Doug Bridges
The Village Taxidermist
www.villagetaxidermist.com
I sell Smooth-On Products and S&S Fleshing Machines
Mold Making and Casting Services for Taxidermists and Beyond!
stargazer644
Platinum Member
*****
Location: United Kingdom.
Posts: 1687

« Reply #12 on: February 18, 2012, 08:09:21 AM »

That is a useful, cleverly crafted piece of equipment. Thanks for sharing  it John.
Logged

In the land of the blind, the man with one eye is King.
wildlife 1
Platinum Member
*****
Location: PA
Posts: 2240

« Reply #13 on: February 18, 2012, 08:13:04 AM »

Thats nice John
Its kind of like how my salt table works.
Logged

Our future is in the youth of today.

Mother Nature creates animals to blend in with Nature.
We Recreate them to blend in with furniture.
Timber Ghost
Platinum Member
*****
Posts: 1285

« Reply #14 on: February 18, 2012, 09:32:49 AM »

 ??? Clean your shop!!!!!
  Not, dang it's clean. Do you use it? LOL

Nice shop and table
Logged

MISSOURI CAT FISH  ARE TOUGH ON NOODLERS
